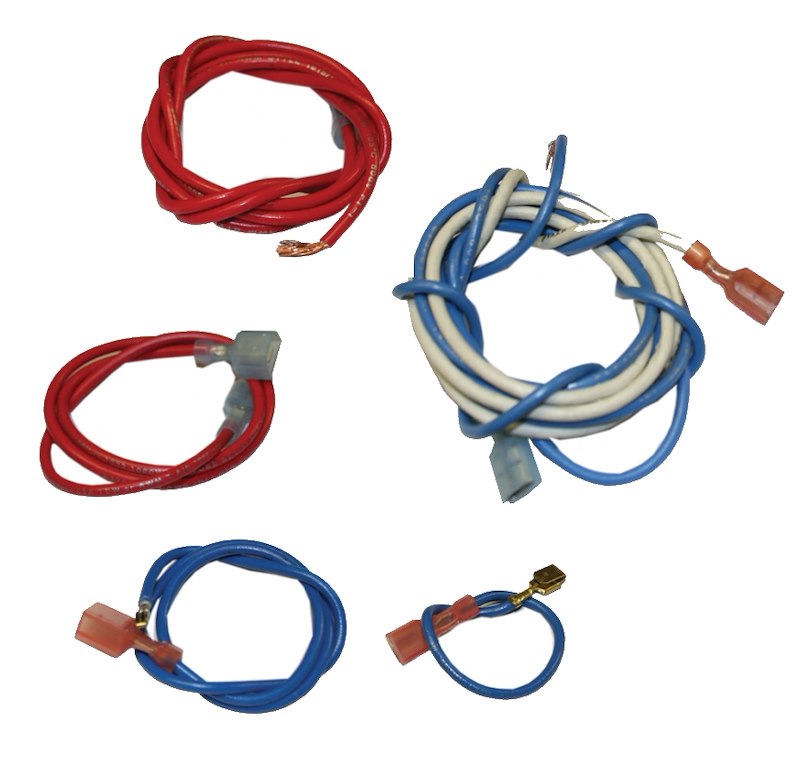

Suburban 520832 Fan Control Wiring Harness Kit – For SF Series Furnaces (Use with 521099 Board)

Product Overview

The Suburban 520832 Fan Control Wiring Harness Kit is designed specifically for Suburban SF series RV furnaces, providing a reliable connection between furnace components to ensure proper operation of the fan control system.

This harness is required when upgrading to the 521099 ignition control board in systems that did not originally include fan control. It enables the added fan control functionality, improving furnace efficiency, performance, and reliability.

Designed for easy installation, the 520832 harness is the ideal solution for maintaining or upgrading your RV furnace system and preventing electrical connection issues.

Key Features

• Designed for Suburban SF series furnaces
• Enables fan control functionality when used with control board 521099
• Required for upgrading older systems without fan control
• Provides secure and reliable wiring connections
• Helps ensure proper furnace operation and efficiency
• Reduces risk of electrical issues and connection failures
• Easy installation with direct-fit design

Specifications

• Part Number: 520832
• Product Type: Fan control wiring harness kit
• Application: Suburban SF series RV furnaces
• Function: Enables fan control integration with 521099 board

Compatible Furnace Models

Suburban SF Series

• SF-20
• SF-20F
• SF-25
• SF-25F
• SF-30
• SF-30F
• SF-35
• SF-35F
• SF-42
• SF-42F

Important Installation Note

This wiring harness is used to connect the Suburban 521099 ignition control board to your furnace system in order to activate the fan control feature.

If your original control board did not include fan control, this harness is required for proper operation.

When Do You Need This Harness?

You will need the 520832 wiring harness if:

• You are upgrading to the 521099 control board
• Your current system does not have fan control wiring
• You are replacing or repairing damaged furnace wiring
• Your blower fan is not functioning correctly after a board upgrade

Why This Harness Matters

• Ensures proper communication between furnace components
• Allows full functionality of upgraded control boards
• Prevents wiring mismatches and installation issues
• Helps extend the life of your furnace system

FAQ

Do I need this with the 521099 control board?
If your original board did not have fan control, then yes — this harness is required.

Will this fit NT series furnaces?
No, this harness is designed specifically for SF series furnaces only.

Is installation difficult?
No, this is a direct-fit harness designed for straightforward installation.

What happens if I don’t install this with a 521099 upgrade?
The fan control feature will not function properly, and the furnace may not operate as intended.
