Step-by-Step RV Furnace Troubleshooting Guide

Use this guide to diagnose the most common RV furnace problems in the right order, starting with the simple checks before moving to replacement parts.

This guide applies to most Suburban and Dometic/Atwood RV furnaces.

Step 1: Identify What the Furnace Is Doing

Start by matching your symptom:

  • Nothing happens at all → power, fuse, thermostat, control board
  • Fan runs but no heat → sail switch, airflow, low voltage
  • Furnace clicks but won’t ignite → igniter electrode, gas valve, propane supply
  • Furnace lights then shuts off → igniter electrode/flame sensing, airflow, limit switch
  • Furnace runs but blows cold air → sail switch or ignition failure

Once you know the symptom, move through the checks below.

Step 2: Check 12V Power First

Your RV furnace depends on strong 12V power, even when plugged into shore power.

Low voltage can cause:

  • Weak blower speed
  • Sail switch failure
  • Ignition failure
  • Short cycling
  • Intermittent shutdowns

Check:

  • Battery charge
  • Fuse panel
  • Ground connections
  • Corroded wiring
  • Loose terminals

Related parts:
RV furnace fuses, thermostats, control boards

Step 3: Confirm the Thermostat Is Calling for Heat

Make sure the thermostat is actually sending the start signal to the furnace.

Check:

  • Thermostat set to heat
  • Temperature set above room temperature
  • Loose thermostat wires
  • Weak or failed thermostat

If the furnace does nothing at all, the thermostat is one of the first things to check.

Related parts:
RV thermostats

Step 4: Listen for the Blower Fan

When the furnace receives a heat call, the blower should start first.

If the blower does not run:

Possible causes include:

  • No 12V power
  • Bad thermostat
  • Blown fuse
  • Bad blower motor
  • Failed control board

If the blower does run:

Move to the sail switch and airflow checks.

Step 5: Check Airflow and the Sail Switch

The sail switch is one of the most common causes of RV furnace problems.

It proves that enough air is moving before the furnace allows ignition.

If the sail switch does not close, the furnace may:

  • Run the fan but never ignite
  • Blow cold air
  • Cycle repeatedly
  • Work intermittently

Check:

  • Blocked vents
  • Dirty blower housing
  • Pet hair or dust buildup
  • Weak blower motor
  • Low battery voltage
  • Sticking sail switch

Most common fix:
Replace the sail switch.

Related parts:
RV furnace sail switches, switches and sensors

Step 6: Check the Propane Supply

If the blower runs and the furnace attempts ignition, make sure propane is available.

Check:

  • Propane tank level
  • Tank valve open
  • Regulator working properly
  • Stove burners operating normally
  • No kinked or restricted LP lines

If other propane appliances are also weak, the issue may be outside the furnace.

Related parts:
Gas valves, regulators, LP fittings

Step 7: Listen for Ignition

After the blower starts and the sail switch closes, the furnace should attempt ignition.

You may hear clicking as the igniter sparks.

If there is no clicking:

Possible causes include:

  • Bad sail switch
  • Failed control board
  • Wiring issue
  • Igniter problem

If it clicks but does not light:

Possible causes include:

  • Dirty or misaligned igniter electrode
  • Weak spark
  • Bad gas valve
  • Poor propane flow

Related parts:
RV furnace igniters and electrodes, gas valves, control boards

Step 8: Check If the Flame Starts Then Shuts Off

If the furnace lights briefly but shuts off quickly, the problem is often flame sensing.

In most RV furnaces, the igniter electrode also confirms that flame is present.

Common causes:

  • Dirty electrode
  • Cracked ceramic insulation
  • Poor electrode alignment
  • Loose electrode wire
  • Weak flame signal

Most common fix:
Clean or replace the igniter electrode assembly.

Related parts:
RV furnace igniters and electrodes

Step 9: Check for Overheating or Limit Switch Problems

If the furnace runs briefly and then shuts off, it may be overheating.

The limit switch shuts the burner down when temperatures get too high.

Common causes:

  • Blocked ducts
  • Closed vents
  • Dirty blower wheel
  • Weak blower motor
  • Restricted intake or exhaust
  • Bad limit switch

Related parts:
RV furnace limit switches, blower motors

Step 10: Consider the Control Board Last

The control board manages the furnace startup sequence, ignition, flame sensing, and shutdown timing.

A bad control board can cause:

  • No ignition
  • Intermittent operation
  • Failure to read flame signal
  • Repeated lockout
  • Blower running with no burner

Because control boards are usually more expensive, check power, airflow, sail switch, propane, and electrode issues first.

Related parts:
RV furnace control boards

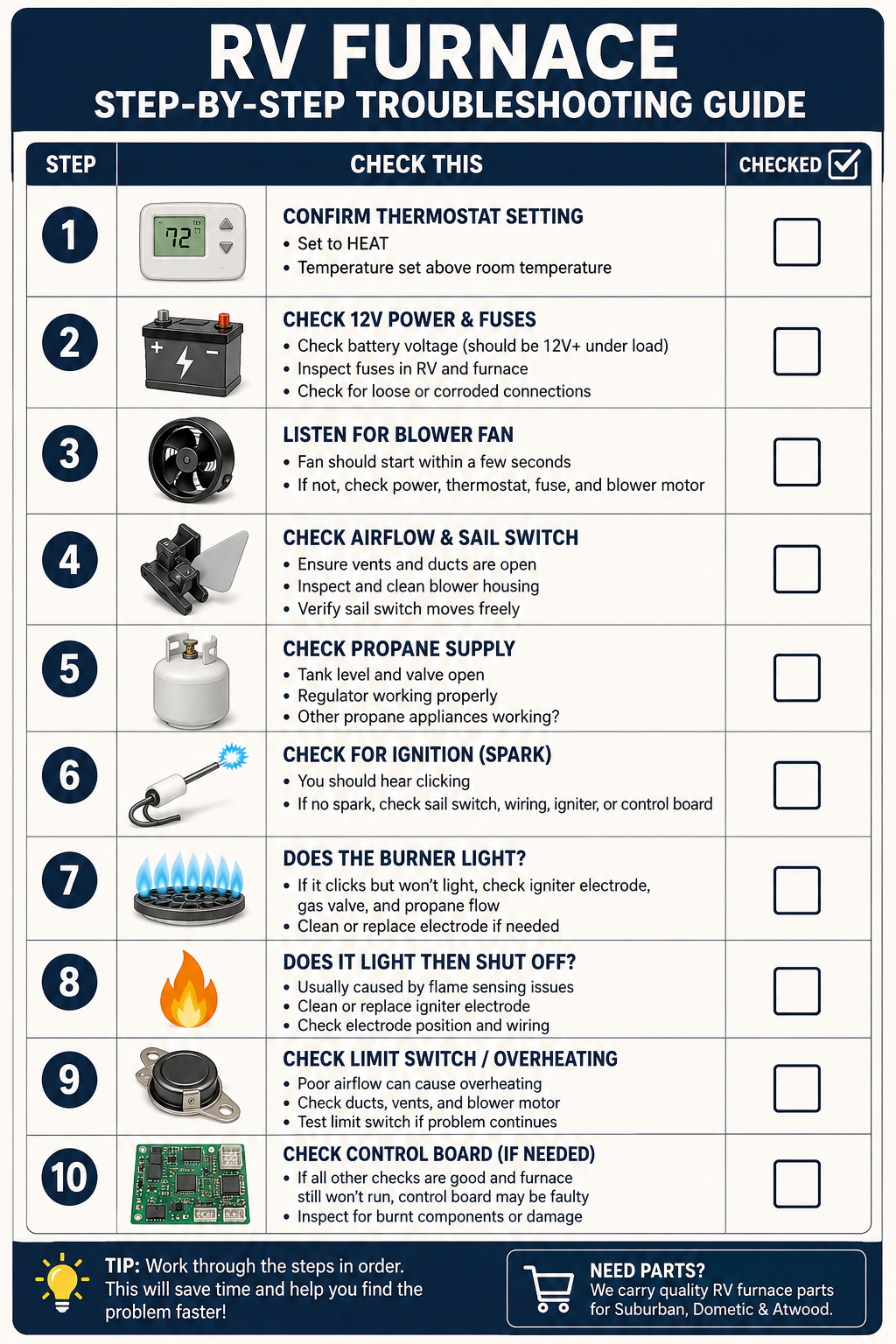

Recommended Troubleshooting Order

For most RV furnace problems, follow this order:

  1. Confirm thermostat setting
  2. Check 12V power and fuses
  3. Listen for blower operation
  4. Check airflow and sail switch
  5. Confirm propane supply
  6. Check igniter electrode
  7. Check flame sensing
  8. Check limit switch
  9. Diagnose control board

Most Common RV Furnace Replacement Parts

The most common parts used to fix RV furnace problems include:

  • Sail switches
  • Igniter electrodes
  • Limit switches
  • Control boards
  • Thermostats
  • Blower motors
  • Gas valves
