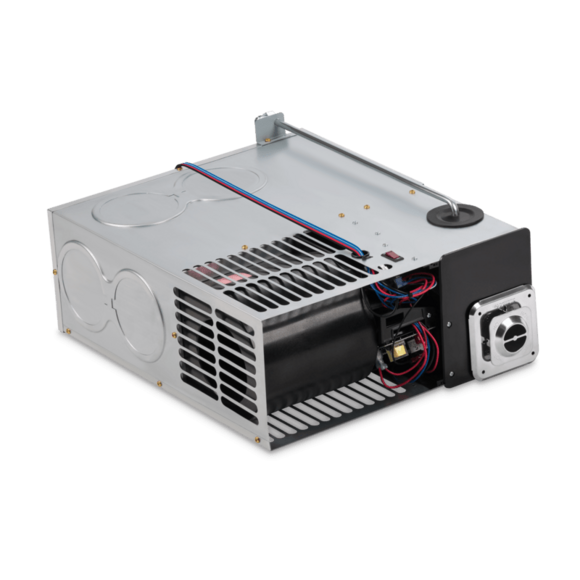

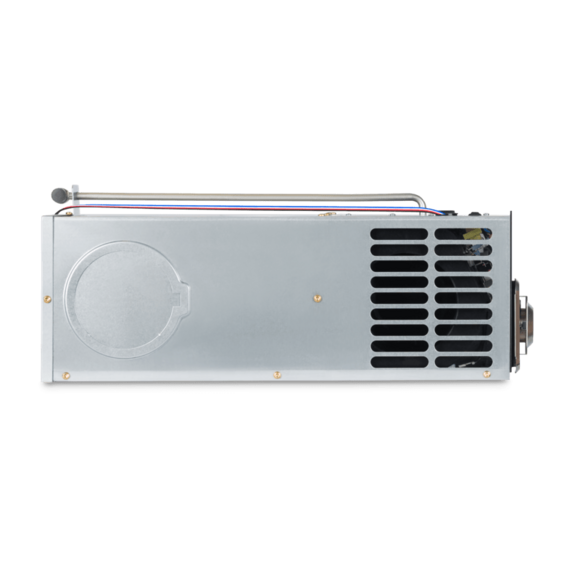

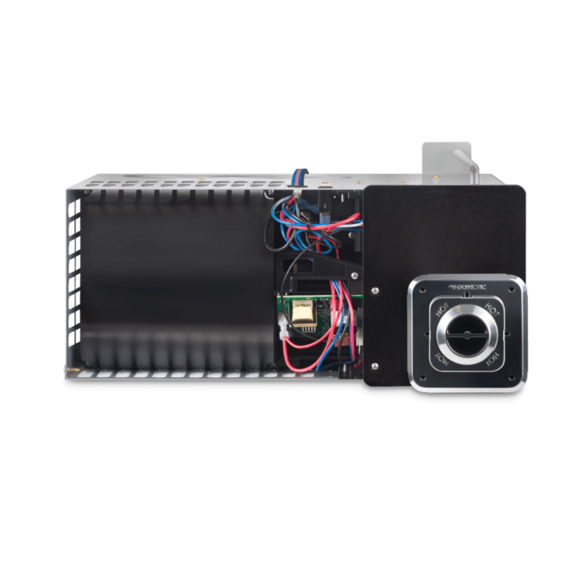

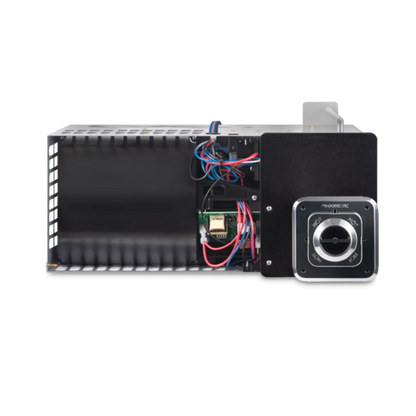

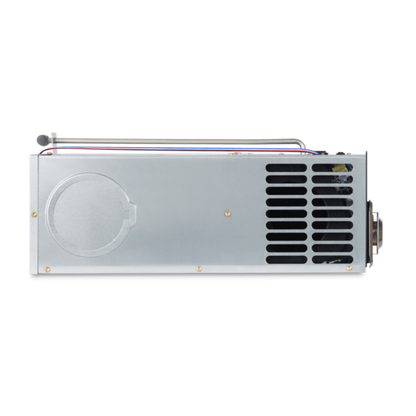

Dometic™ DFMDH30121 RV Furnace – 30,000 BTU – LP Gas – Bottom Discharge – 12V DC

DFM Series | Hall Effect Sensor | Doorless Design | Medium Size

Model: DFMDH30121
Series: DFM “H” Series
Fuel Type: LP Gas (Propane)
BTU Output: 30,000 BTU
Stage: Single Stage
Voltage: 12 Volt DC
Discharge Type: Bottom Discharge
Gas Connection: Rear Gas Manifold
Exterior Door: Not Required (Doorless Model)
Thermostat Sold Separately

2-Year Limited Manufacturer Warranty

Product Overview

The Dometic™ DFMDH30121 is a powerful 30,000 BTU LP gas RV furnace designed for medium-sized heating applications requiring bottom-discharge ducting and flexible installation.

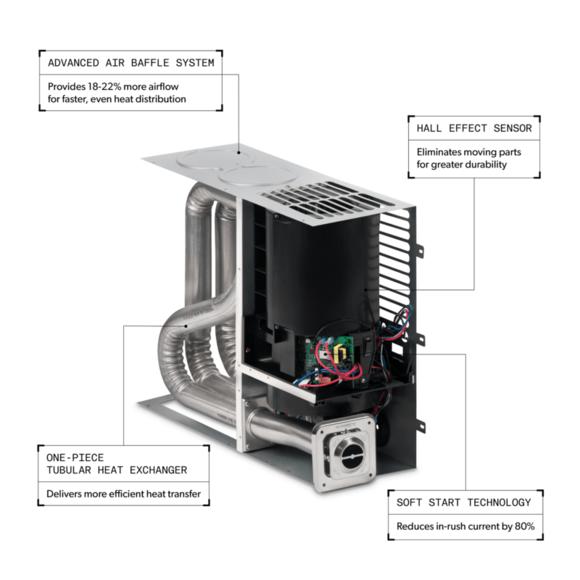

This model is part of Dometic’s advanced DFM “H” Series, which features an electronic Hall Effect airflow verification system instead of a traditional mechanical sail switch. The Hall sensor electronically monitors blower motor rotation before ignition, improving reliability and reducing service issues caused by stuck or contaminated sail switches.

The DFMDH30121 is a doorless furnace, meaning an exterior access door is not required for installation. This eliminates the need to cut a large exterior opening in your RV sidewall — making it one of the easiest furnaces to install in:

• Van conversions
• Small travel trailers
• Truck campers
• Tiny homes
• Ice fishing houses
• Custom RV builds

⚠ Important: Always measure your existing furnace cut-out to ensure proper fit before ordering.

Key Features

• 30,000 BTU heating capacity
• LP gas (propane) operation
• Single-stage heating
• Bottom discharge airflow configuration
• 12 Volt DC operation
• Hall Effect airflow verification system (no mechanical sail switch)
• Built-In Soft Start technology
• Rear gas manifold connection
• Doorless installation design
• Thermostat sold separately

Specifications

• Model: DFMDH30121
• Series: DFM H Series
• BTU Rating: 30,000 BTU
• Fuel Type: LP Gas
• Heating Stage: Single Stage
• Voltage: 12 Volt DC
• Discharge Type: Bottom
• Gas Connection: Rear Manifold

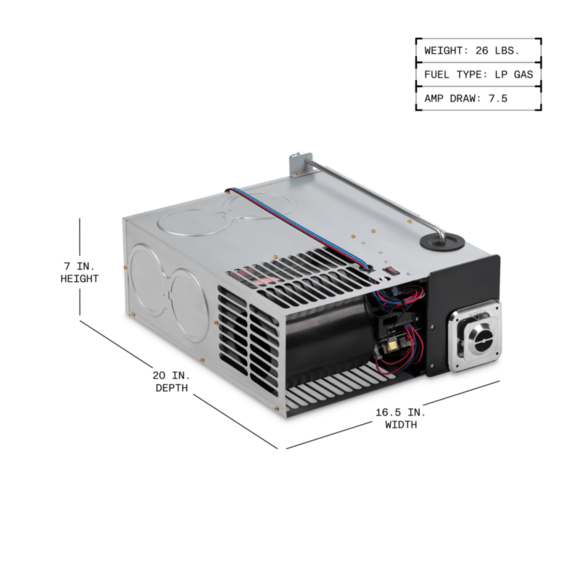

• Width: 16-1/2 inches
• Height: 7 inches
• Depth: 20 inches
• Airflow Monitoring: Hall Effect Sensor
• Soft Start: Yes
• Exterior Access Door Included: No
• Thermostat Included: No

Doorless Installation – Pros & Cons

Benefits of Doorless Installation

• No large cut required in sidewall
• Cleaner RV exterior appearance
• More flexible mounting options
• Easier installation in compact builds
• Ideal for van conversions and custom layouts

⚠ Considerations

• Servicing must be done from inside the RV
• No exterior service access panel

This design makes the DFMDH30121 extremely versatile for non-traditional builds and space-constrained installations.

Why Choose the DFM “H” Series?

Traditional RV furnaces use mechanical sail switches to confirm airflow. Over time, these can stick, get dirty, or cause intermittent ignition failures.

The Hall Effect system in the DFMDH30121:

✔ Electronically verifies blower rotation
✔ Improves ignition reliability
✔ Reduces maintenance
✔ Performs better in dusty or cold conditions

Combined with Soft Start technology, it reduces electrical surge during startup — helping protect RV wiring and batteries.

Frequently Asked Questions (FAQ)

Q: What does the “H” stand for?
A: It indicates the furnace uses a Hall Effect airflow sensor instead of a mechanical sail switch.

Q: Does this model require an exterior furnace door?
A: No. This is a doorless design.

Q: Where is the gas connection located?
A: This model uses a rear gas manifold configuration.

Q: Does it include a thermostat?
A: No. A compatible 12V furnace thermostat is required and sold separately.

Q: What does Bottom Discharge mean?
A: Heated air flows downward into floor ducting systems.

Q: Is this compatible with traditional DFM cut-outs?
A: It shares the same physical footprint as other medium DFM models, but always measure your cut-out before ordering.
