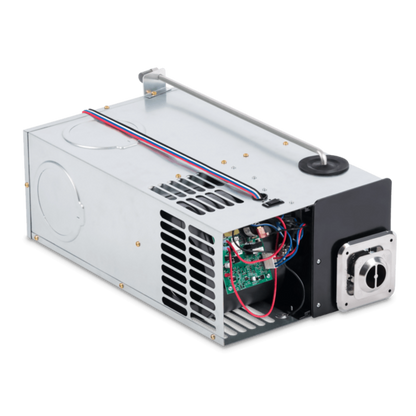

Dometic™ DFSDH20121 RV Furnace – 20,000 BTU – LP Gas – 12V DC

DFS Series | Hall Effect Sensor | Outside Valve Manifold | Doorless Model | 2-Year Warranty

Model: DFSDH20121
Series: DFS “H” Series
Fuel Type: LP Gas (Propane)
BTU Output: 20,000 BTU
Heating Stage: Single Stage
Voltage: 12 Volt DC
Ducting: Side or Bottom Discharge
Configuration: Outside Valve Manifold / Less Door
Electronic Ignition: Yes
Vent Assembly: Not Included
Access Doors & Thermostat Sold Separately

Product Overview

The Dometic™ DFSDH20121 is a compact 20,000 BTU single-stage LP gas RV furnace designed for small RVs, van conversions, truck campers, and specialty builds requiring efficient heating in tight spaces.

This model is part of the modern DFS “H” Series, utilizing an advanced Hall Effect airflow verification system instead of a traditional mechanical sail switch. The Hall sensor electronically monitors blower motor rotation prior to ignition, improving reliability and minimizing common airflow-related failures.

The DFSDH20121 features an outside valve manifold (less door configuration), meaning it does not include an exterior access door or vent assembly. This allows greater installation flexibility and eliminates the need for a large sidewall cut-out — ideal for custom builds and non-traditional RV layouts.

⚠ Important: Access doors, vent assembly, and thermostat are sold separately.
⚠ Always measure your existing cut-out before ordering to confirm proper fit.

Key Features

• 20,000 BTU heating capacity
• LP Gas (propane) operation
• Single-stage heating system
• 12 Volt DC operation
• Electronic ignition system
• Hall Effect airflow verification (no mechanical sail switch)
• Side or bottom ducting compatibility
• Small chassis footprint (12" width)
• Outside valve manifold configuration
• Doorless (exterior door not included)
• Vent assembly not included
• Thermostat sold separately
• 2-Year Limited Manufacturer Warranty

Specifications

• Model: DFSDH20121
• Series: DFS H Series
• BTU Rating: 20,000 BTU
• Heating Stage: Single Stage
• Fuel Type: LP Gas
• Voltage: 12 Volt DC
• Ducting Options: Side or Bottom

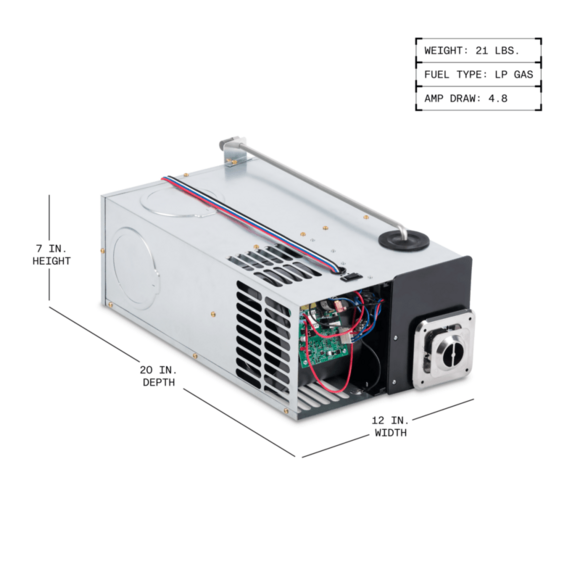

• Width: 12 inches
• Height: 7 inches
• Depth: 20 inches
• Ignition Type: Electronic Ignition
• Airflow Monitoring: Hall Effect Sensor
• Vent Assembly Included: No
• Exterior Access Door Included: No
• Thermostat Included: No
• Warranty: 2-Year Limited Manufacturer Warranty

Outside Valve Manifold / Less Door Design – What It Means

This model is designed for installations where:

✔ An exterior furnace door is not desired
✔ A large sidewall cut is not practical
✔ Flexible positioning is required
✔ Custom interior servicing access is preferred

Benefits

• Cleaner RV exterior
• Greater installation flexibility
• Ideal for vans, compact builds, ice houses, and custom layouts

Considerations

• Furnace must be serviced from inside the RV
• Vent assembly must be selected separately

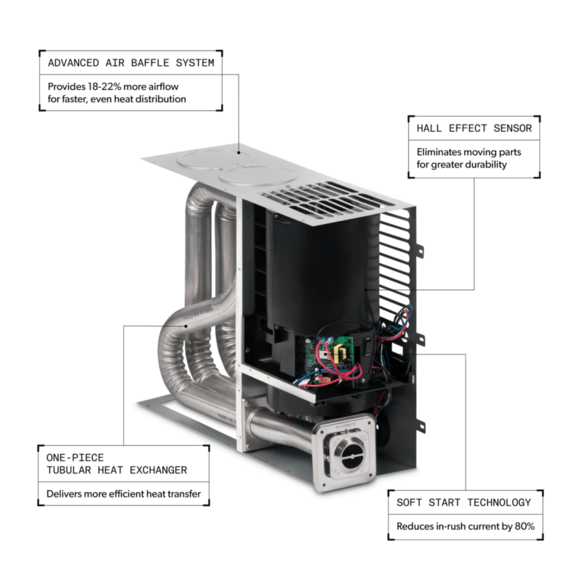

Why Choose the DFS “H” Series?

Older small furnaces rely on mechanical sail switches, which can:

• Become dirty or stuck
• Cause intermittent ignition failures
• Require periodic cleaning

The Hall Effect system in the DFSDH20121 electronically confirms airflow through motor rotation detection, resulting in:

✔ Faster, more reliable ignition
✔ Reduced maintenance
✔ Improved long-term durability
✔ Better cold-weather reliability

Ideal Applications

• Van conversions
• Truck campers
• Small travel trailers
• Overlanding rigs
• Tiny homes
• Ice fishing houses

Its compact 12-inch width makes it ideal for tight furnace compartments.

Frequently Asked Questions (FAQ)

Q: What does the “H” designate?
A: It indicates a Hall Effect airflow verification system instead of a mechanical sail switch.

Q: Does this furnace include an exterior door?
A: No. This is a less-door configuration.

Q: Is the vent assembly included?
A: No. The vent assembly must be purchased separately.

Q: Does this use electronic ignition?
A: Yes, this furnace features electronic ignition.

Q: What warranty is included?
A: This model includes a 2-year limited manufacturer warranty.

Q: Can it be ducted from either side or bottom?
A: Yes. It supports both side and bottom discharge configurations.
