Dometic™ DFMDH25121 RV Furnace – 25,000 BTU – LP Gas – Bottom Discharge – 12V DC

DFM Series | Hall Effect Sensor Model | Doorless Design | Medium Size

Model: DFMDH25121
Series: DFM “H” Series
Fuel Type: LP Gas (Propane)
BTU Output: 25,000 BTU
Stage: Single Stage
Voltage: 12 Volt DC
Discharge Type: Bottom Discharge
Thermostat Sold Separately
Exterior Door Not Included (Doorless Model)

2-Year Limited Manufacturer Warranty

Product Overview

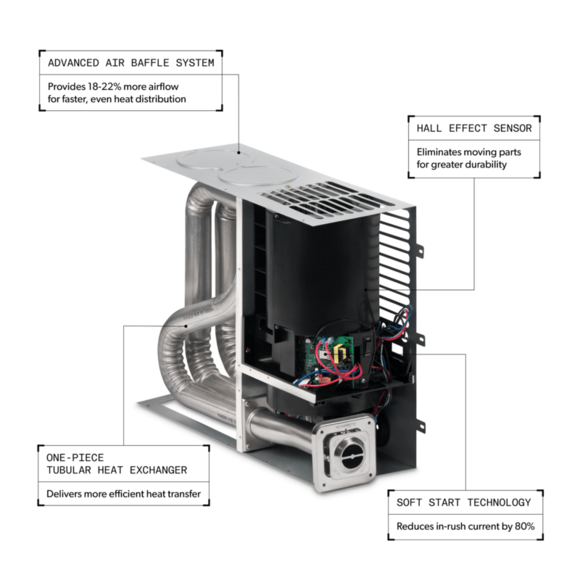

The Dometic™ DFMDH25121 is a 25,000 BTU LP gas RV furnace from the advanced DFM “H” Series, featuring an electronic Hall Effect airflow sensor and built-in Soft Start technology for improved electrical startup performance.

This version is a doorless heater model, meaning an exterior access door is not required for installation. Instead, service and access are performed from inside the RV or living space.

This doorless configuration makes the DFMDH25121 especially well-suited for:

• Vans and van conversions
• Small travel trailers
• Truck campers
• Ice fishing houses
• Custom RV layouts with limited exterior wall space

Before ordering, always measure your existing furnace cut-out to ensure the unit will fit properly within your available space.

Key Features

• 25,000 BTU heating capacity
• LP gas (propane) operation
• Single-stage heating performance
• Bottom discharge airflow configuration
• 12 Volt DC operation
• Hall Effect airflow sensor (no mechanical sail switch)
• Built-in Soft Start for reduced electrical surge
• Doorless design (no exterior access door required)
• Ideal for compact or custom installs
• Thermostat sold separately

Specifications

• Model: DFMDH25121
• Series: DFM H Series
• BTU Rating: 25,000 BTU
• Fuel Type: LP Gas (Propane)
• Heating Stage: Single Stage
• Voltage: 12 Volt DC
• Discharge Configuration: Bottom

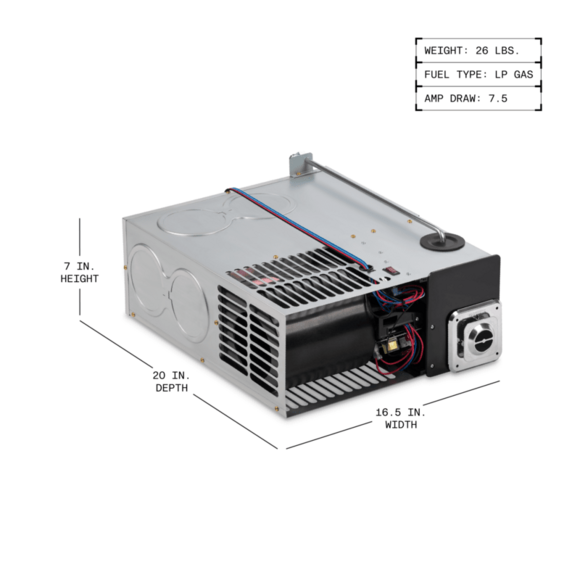

• Width: 16-1/2 inches
• Height: 7 inches
• Depth: 20 inches
• Airflow Monitoring: Hall Effect Sensor
• Soft Start Technology: Yes
• Exterior Access Door: Not Required
• Thermostat Included: No

Doorless Installation – Pros & Cons

Doorless Design Benefits

• No large exterior cut-out required — perfect for vans, truck campers, tiny houses, and custom builds.
• Flexible placement — this furnace can be mounted in multiple orientations and locations.
• Simplified installation — fewer exterior modifications needed.
• Clean RV exterior — no visible furnace access door on the sidewall.

Considerations (Cons)

• Interior access required for servicing — you must remove ceiling panels or interior trim to reach the furnace.
• Not ideal if you want external maintenance access without entering the RV.

This design trade-off makes the DFMDH25121 one of the most adaptable furnace solutions for non-traditional RV builds and limited exterior wall applications.

Why Choose This Model?

The DFMDH25121 combines traditional propane furnace power with modern electronics and installation flexibility. Key advantages include:

• Hall Effect sensing for reliable ignition
• Soft Start technology for reduced electrical demand
• Compact footprint for tight installations
• No need for an exterior access door
• Ideal for custom RV, overland, or conversion projects

Frequently Asked Questions (FAQ)

Q: What does “Hall Effect sensor” mean?
A: The Hall Effect system electronically verifies blower airflow by detecting motor rotation, eliminating the need for a mechanical sail switch.

Q: Why is this model “doorless”?
A: It’s designed to install without an exterior furnace access door — perfect when you don’t want or can’t cut a large hole through your sidewall.

Q: Where do I service the furnace?
A: From inside the RV; panels or trim must be removed to access the heater for service.

Q: Does this include a thermostat?
A: No. A compatible 12V furnace thermostat must be purchased separately.

Q: Will this fit a standard furnace cut-out?
A: It uses the same footprint as other 25,000 BTU DFM models, but always measure your cut-out before ordering.
