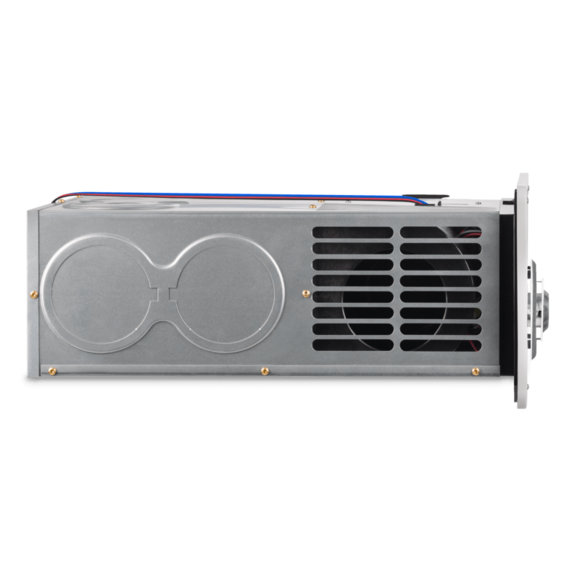

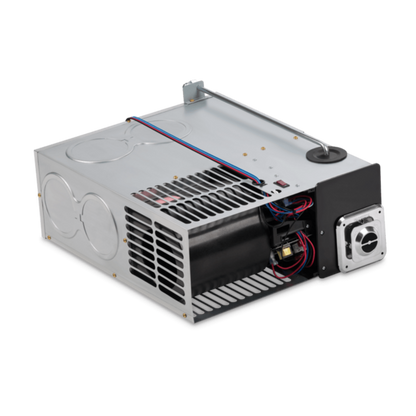

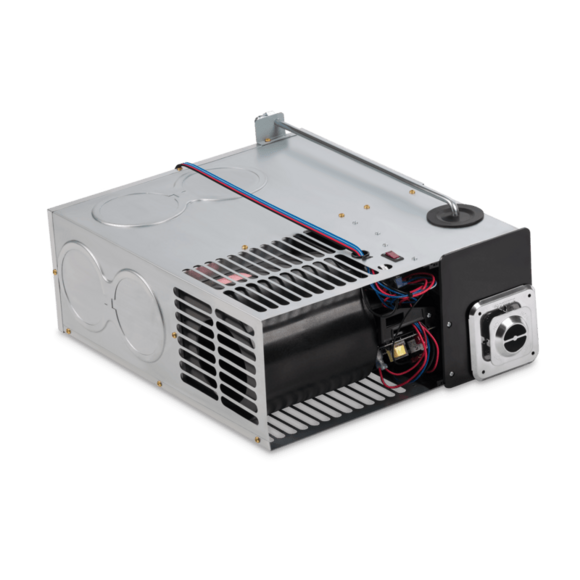

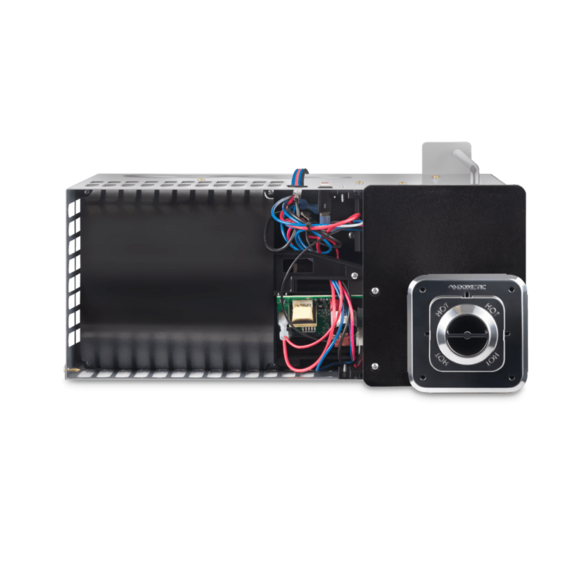

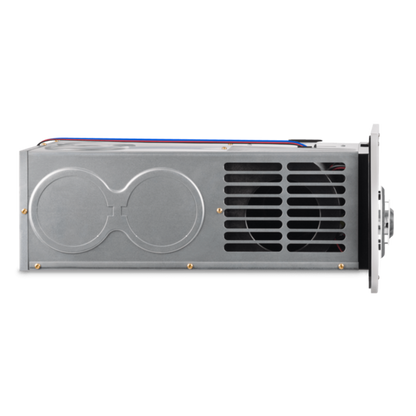

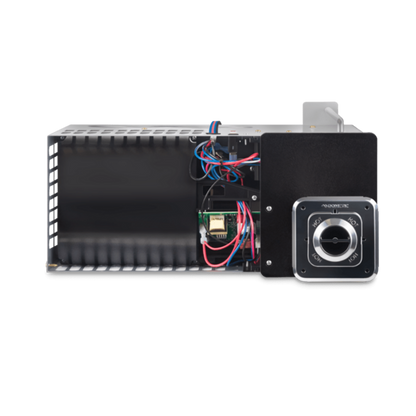

Dometic™ DFMDH35121 RV Furnace – 35,000 BTU – LP Gas – Bottom Discharge – 12V DC

DFM Series | Hall Effect Sensor | Doorless Model | 2-Year Warranty

Model: DFMDH35121
Series: DFM “H” Series
Fuel Type: LP Gas (Propane)
BTU Output: 35,000 BTU
Stage: Single Stage
Voltage: 12 Volt DC
Discharge Type: Bottom Discharge
Gas Connection: Rear Gas Manifold
Exterior Door: Not Required (Doorless Model)
Thermostat Sold Separately

Product Overview

The Dometic™ DFMDH35121 is a high-output 35,000 BTU LP gas RV furnace designed for medium-sized heating applications where maximum flexibility and installation simplicity are required.

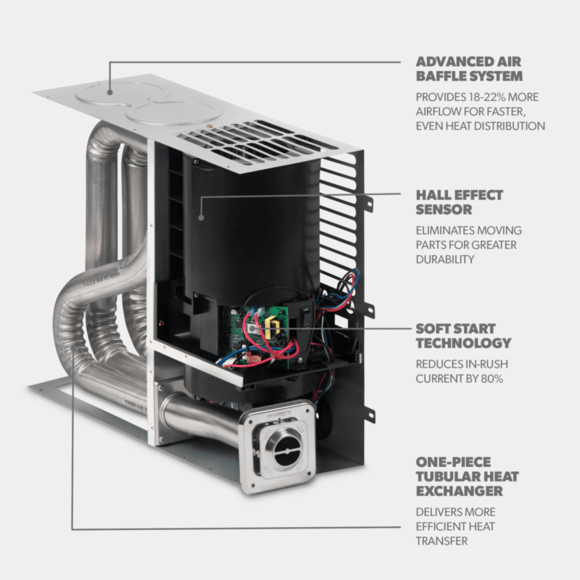

This model is part of the advanced DFM “H” Series, featuring a modern Hall Effect airflow verification system that replaces the traditional mechanical sail switch. The Hall sensor electronically monitors blower motor rotation to confirm proper airflow before ignition — improving reliability and reducing common airflow-related service issues.

Unlike standard furnace models, the DFMDH35121 is a doorless configuration, meaning no exterior access door is required for installation. This eliminates the need to cut a large hole in the sidewall of your RV.

This makes the DFMDH35121 one of the easiest furnaces to install in:

• Van conversions
• Small travel trailers
• Truck campers
• Overland builds
• Tiny homes
• Ice fishing houses

⚠ Important: Always measure your existing cut-out before ordering to ensure proper fitment.

Key Features

• 35,000 BTU heating capacity
• LP gas (propane) operation
• Single-stage heating performance
• Bottom discharge airflow configuration
• 12 Volt DC operation
• Hall Effect airflow verification (no mechanical sail switch)
• Built-In Soft Start technology
• Rear gas manifold configuration
• Doorless design (no exterior access door required)
• Flexible installation orientation
• Thermostat sold separately
• 2-Year Limited Manufacturer Warranty

Specifications

• Model: DFMDH35121
• Series: DFM H Series
• BTU Rating: 35,000 BTU
• Fuel Type: LP Gas
• Heating Stage: Single Stage
• Voltage: 12 Volt DC
• Airflow Configuration: Bottom Discharge
• Gas Connection: Rear Manifold

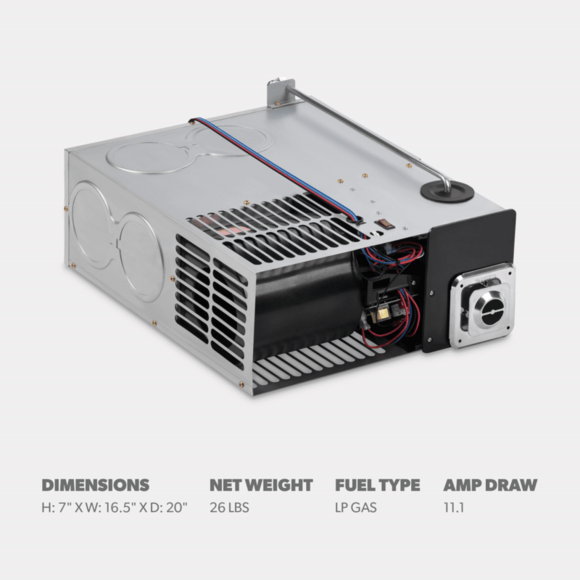

• Width: 16-1/2 inches
• Height: 7 inches
• Depth: 20 inches
• Airflow Monitoring: Hall Effect Sensor
• Soft Start: Yes
• Exterior Door Included: No (Doorless Model)
• Thermostat Included: No
• Warranty: 2-Year Limited Manufacturer Warranty

Doorless Installation – Pros & Cons

Benefits

• No large exterior wall cut required
• Cleaner RV exterior appearance
• Greater flexibility in mounting options
• Easier installation for custom builds
• Ideal for compact or specialty RV layouts

⚠ Considerations

• Furnace must be serviced from inside the RV
• No exterior access panel for maintenance

For many van and custom builds, avoiding a large exterior cut is a major installation advantage.

Why Choose the DFM “H” Series?

Traditional RV furnaces use mechanical sail switches that can:

• Stick or collect debris
• Cause intermittent ignition failures
• Require cleaning or replacement

The Hall Effect system in the DFMDH35121 electronically verifies airflow by monitoring motor rotation, resulting in:

✔ Improved ignition reliability
✔ Reduced maintenance
✔ Better cold-weather performance
✔ Fewer airflow-related faults

Combined with Soft Start technology, it reduces startup surge and protects your RV’s 12V electrical system.

Frequently Asked Questions (FAQ)

Q: What does the “H” in DFMDH mean?
A: It indicates a Hall Effect airflow verification system rather than a mechanical sail switch.

Q: Does this furnace require an exterior access door?
A: No. This is a doorless model.

Q: Where is the gas connection located?
A: It uses a rear gas manifold configuration.

Q: Is this propane only?
A: Yes, it operates on LP gas (propane).

Q: Is a thermostat included?
A: No. A compatible 12V furnace thermostat must be purchased separately.

Q: What warranty is included?
A: This furnace includes a 2-year limited manufacturer warranty.
