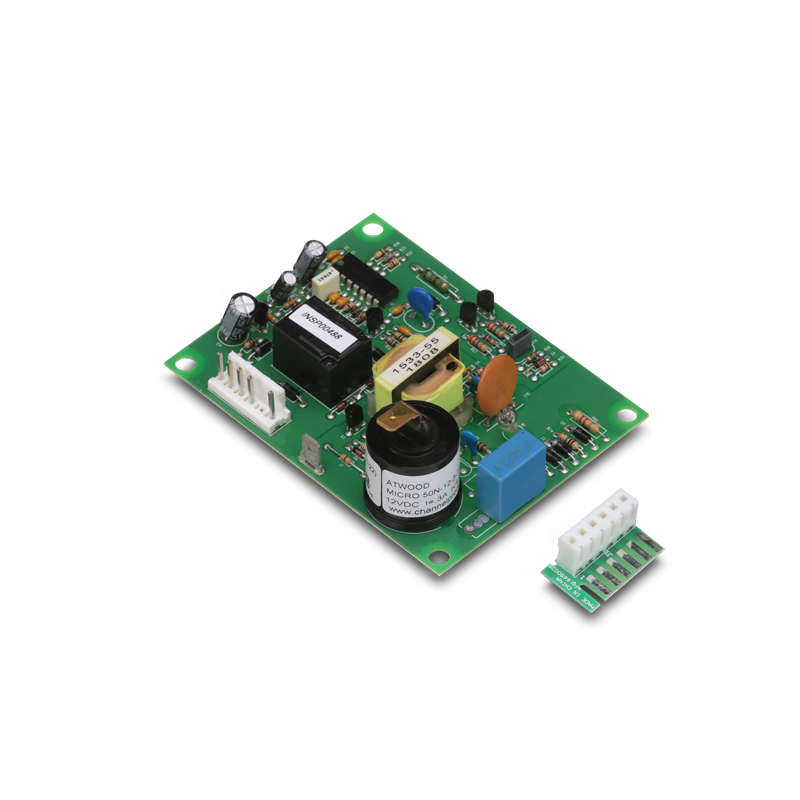

Dometic / Atwood 34696 Ignition Control Circuit Board

Replacement For Atwood 2-Stage RV Furnaces

Part Number: 34696
Product Type: Ignition Control Circuit Board
Furnace Type: Two-Stage Electronic Ignition Furnaces
Manufacturer: Dometic / Atwood

Product Overview

The Dometic / Atwood 34696 Ignition Control Circuit Board is a replacement control module designed for Atwood HydroFlame two-stage RV furnaces. This electronic ignition board manages the furnace ignition sequence, including spark ignition, blower timing, and gas valve control to ensure safe and reliable operation.

When the ignition board fails, the furnace may run the blower without igniting, fail to start heating cycles, or shut down prematurely. Replacing the control board restores proper furnace ignition sequencing and burner operation.

This board is specifically engineered for Atwood XT and other two-stage furnace systems, providing a direct replacement for the factory-installed control module.

Key Features

• OEM replacement ignition control circuit board
• Designed for Atwood two-stage furnace systems
• Controls ignition timing and gas valve operation
• Restores proper furnace start-up and heating cycles
• Durable electronics designed for RV heating environments
• Direct replacement for the original factory board

Compatible Furnace Models

Compatible with the following Atwood two-stage furnaces:

• XT 1522 (2-Stage)

• XT 2334 (2-Stage)

• XT 2540 (2-Stage)

Also compatible with LD variants of these furnaces.

Common Symptoms of a Failed Ignition Board

A faulty ignition board can cause several furnace issues, including:

• Furnace blower runs but no burner ignition
• Furnace attempts ignition but shuts down
• Intermittent heating cycles
• Furnace fails to respond to thermostat call for heat
• Erratic burner operation

Replacing the ignition control board is often required when the sail switch, limit switch, and gas valve test good but ignition still fails.

Specifications

• Part Number: 34696
• Component Type: Ignition Control Circuit Board
• Ignition Type: Electronic Ignition (DSI)
• Furnace Type: Two-Stage RV Furnace
• Protective Cover: No
• Application: Atwood HydroFlame Furnaces

Frequently Asked Questions (FAQ)

Q: What does the ignition control board do?
A: The ignition board controls the furnace ignition sequence, including spark ignition, blower motor timing, and gas valve activation.

Q: Is this compatible with single-stage furnaces?
A: No. This board is designed specifically for Atwood two-stage furnace systems.

Q: Can a bad ignition board cause the furnace blower to run without heat?
A: Yes. A failed ignition board can allow the blower motor to run while preventing the burner from igniting.

Q: Is this an OEM replacement part?
A: Yes, this is an OEM Dometic / Atwood replacement circuit board designed for HydroFlame furnace systems.
