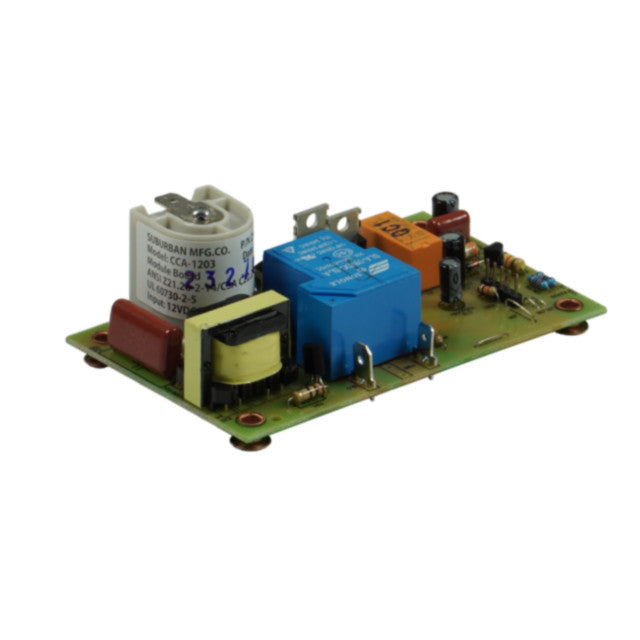

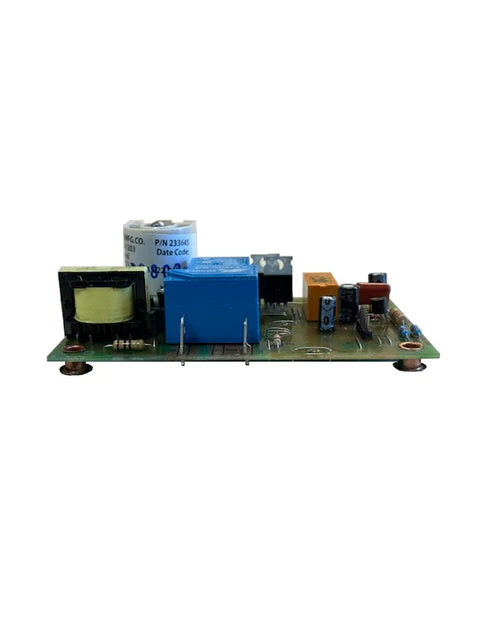

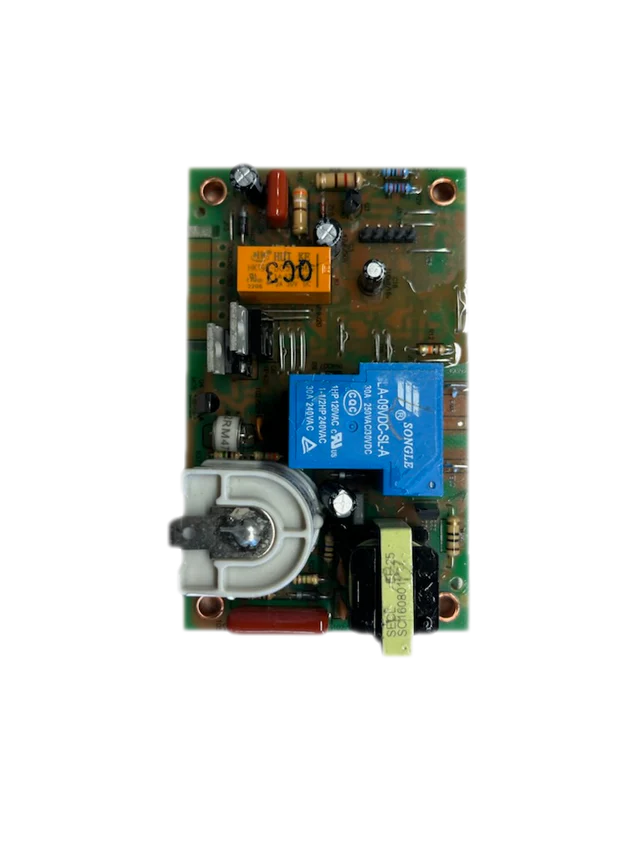

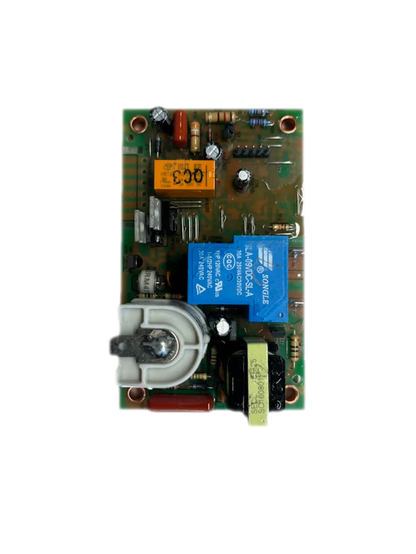

Suburban 521099 Ignition Control Circuit Board – 12V Furnace Replacement (520741 / 520820)

Product Overview

The Suburban 521099 Ignition Control Circuit Board is the upgraded, direct replacement for older Suburban furnace control boards, including 520741 and 520820. Designed for Suburban 12V RV furnaces, this board acts as the “brain” of your heating system—controlling ignition, monitoring flame, and managing blower operation.

Built with integrated fan control (3rd generation / 3G design), this module improves furnace performance, safety, and reliability—making it one of the most commonly replaced and most important components in Suburban furnace systems.

Important: This board is 12 Volt DC ONLY and will NOT replace 24 Volt AC boards.

Key Features

• Direct replacement for Suburban 520741 & 520820 boards
• Works on all Suburban 12V furnaces (SF & NT series)
  • Excludes NT-45S model
• 3rd Generation (3G) DSI board with integrated fan control
• Controls full ignition sequence (spark, gas valve, flame sensing)
• Built-in safety lockout and flame monitoring
• Plug-and-play installation in most applications
• If replacing a board without fan control, a separate wiring harness is required (sold separately)
• 3-year manufacturer limited warranty
• Compact, durable design for RV environments

Specifications

• Part Number: 521099
• Voltage: 12 Volt DC
• Function: Ignition control and blower fan control
• Application: Suburban RV furnaces (SF & NT series)
• Exclusions: NT-45S
• Not Compatible With: 24 Volt AC furnace systems

Replaces Part Numbers

• 520741
• 520820
• 520871
• 520814
• 33550L
• Multiple legacy Suburban ignition boards

Compatible Furnace Models

Suburban SF Series

SF-20 / SF-25 / SF-30 / SF-35 / SF-42
SF-Q, SF-FQ, SF-VHQ, SF-VHFQ variants

Suburban NT Series

NT-12 / NT-16 / NT-20 / NT-24 / NT-25 / NT-30 / NT-34 / NT-40 / NT-42
NT-S, NT-SE, NT-SP, NT-SQ, NT-SEQ models

Compatible with nearly all Suburban 12V furnaces
Excludes NT-45S

When Should You Replace the Control Board?

You may need the 521099 board if your furnace:

• Will not ignite (no spark)
• Cycles but does not light
• Blower runs but no heat
• Locks out after multiple attempts
• Has intermittent ignition issues

This is one of the most common failure points in Suburban furnaces.

Why Upgrade to the 521099 (3G Board)?

• Combines ignition and fan control into one unit
• Improves safety with lockout protection
• More reliable than older boards
• Simplifies troubleshooting and replacement

FAQ

Will this replace my 520741 or 520820 board?
Yes, the 521099 is the direct upgraded replacement for both.

Does this work with all Suburban furnaces?
It works with most Suburban 12V furnaces, but does NOT fit the NT-45S.

Do I need anything else to install this?
If your current board does not have fan control, you will need a separate wiring harness (sold separately).

Can I use this on a 24V system?
No, this is strictly 12V DC only.

Is there a warranty?
Yes, this board includes a 3-year manufacturer limited warranty.
